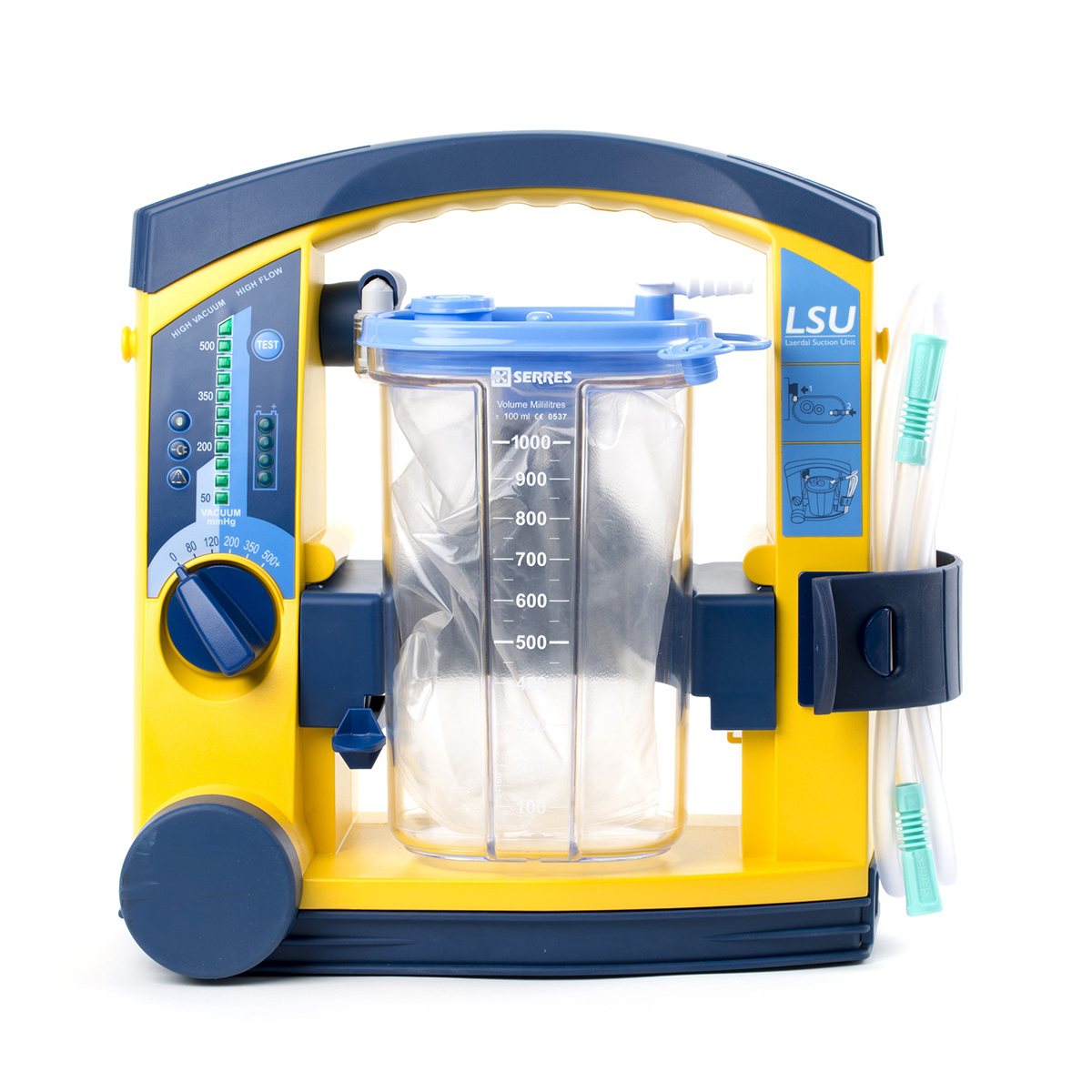

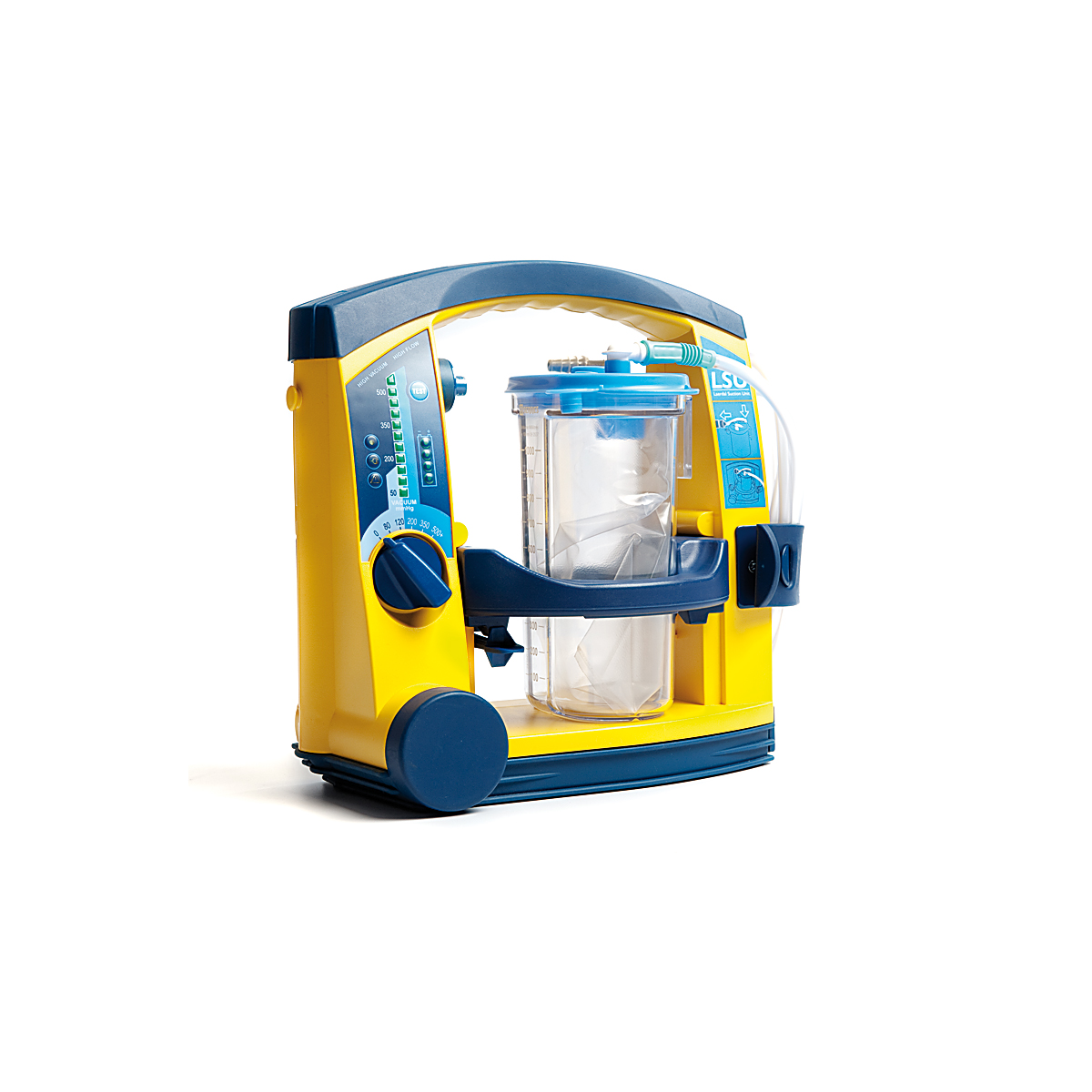

Laerdal Suction Unit with Serres Canister System

Laerdal Suction Unit with Serres Canister System
Laerdal Suction Unit with Serres Canister System
Laerdal Suction Unit with Serres Canister System
Laerdal Suction Unit with Serres Canister System

Laerdal Suction Unit with Serres Canister System

Product Code: F79060
£875.00 £1,050.00 inc. VAT
38 in stock

${ errors.first('quantity field') }

Delivery information

Products are typically dispatched within 3-5 working days. More info

About this product

  • Portable, powerful and highly reliable suction unit designed for optimal preparation in emergency situations
  • Rugged, bump and smash proof design
  • Easy to use with just one single large button to operate with colour and size coded tubing
  • Reusable Serres canister and disposable liner to avoid contact with contaminates
  • Checks diagnostics and all critical system functions.

Further Description

Quiet running and shock & splash proof design makes it an excellent option in nearly all settings, such as use in an ambulance, hospital and post care units. In extreme situations, the LSU can reach a vacuum of 500 + mmHg and has a flow rate of >25 LPM, exceeding International Standards.

One-touch 10 second testing, lets you know if the LSU is ready for use in the field. The test checks for blockages in the suction system, vacuum build-up efficiency, maximum achievable vacuum level and air leakages in the pump system.

The LSU automatically charges when connected to an external power source, and charges to 80% after just 3 hours, it is ready for use when needed.

Includes a built in AC/DC power transformer so the unit can be operated by AC/DC mains or an optional wall bracket.

For ease of use in difficult situations, the LSU has a built in suction indicator, with colour coding, to help ensure the correct vacuum strength is selected for children.

The display shows power ON indication, external power indicator, battery level indicator, vacuum indicator and failure mode indicator if a malfunction has been detected.

CE marked - This product is in compliance with the essential requirements of Council Directive 93/42/EEC Medical Device Directive, as amended by Council Directive 2007/47/EC, class IIa

High efficiency filter kit. HEPA rated bacterial filter.

Latex-free.

5 year limited warranty (excluding the canisters, tubing systems and battery. Battery = 90 days)

Contents

  • Laerdal Suction Unit (LSU)
  • 12V DC Power-cord for connection to vehicle connection
  • Rechargeable Battery, NiMH, 12 VDC 2 Ah
  • External Battery Charger
  • Filter liner
  • Serres Suction Bag Canister
  • Directions for use

Technical Specifications

Dimensions: 31.5 x 33 x 16cm

Weight: 4kg

Canister capacity: 1000ml

Air Flow: >25 LPM (free flow)

Vacuum - Max.: 500+ mmHg (67 kPA)

Vacuum - Range: 80 - 500+ mmHg (11 - 67 kPa)

Battery run time: Approximately 45 minutes (free flow)

Noise level: 46 - 56 dBA (80 - 500 mmHg)
